How Accurate is Endress Hauser Micropilot FMR6x?
Foreword

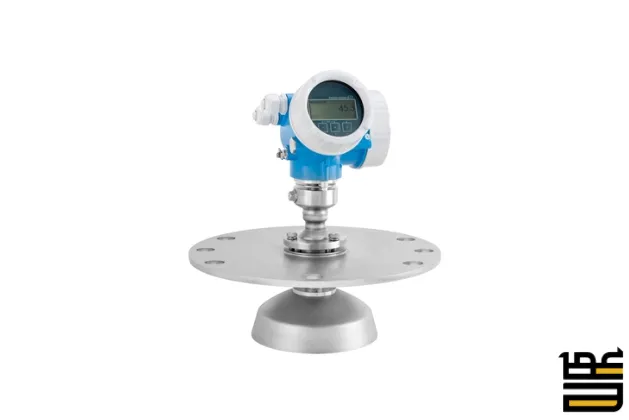

The Endress+Hauser Micropilot FMR6x is a series of radar level transmitters specifically designed for precise level measurement in challenging industrial environments, including the oil and gas industry. These instruments utilize advanced radar technology, offering non-contact level measurement with high accuracy and reliability.
In the oil and gas sector, where safety and precision are paramount, the Micropilot FMR6x is used to monitor the levels of liquids, such as crude oil, refined products, and various chemicals in tanks, vessels, and pipelines. The device operates effectively in harsh conditions, such as extreme temperatures, high pressures, and corrosive environments, making it an ideal choice for upstream, midstream, and downstream operations.
Everything about Endress Hauser Micropilot FMR6x
Key Features of the Endress Hauser Micropilot FMR6x
The Endress Hauser Micropilot FMR6x series is a highly advanced radar level measurement instrument commonly used in the oil and gas, and petrochemical industries. Below are the key features that make it suitable for these sectors:
High Precision Measurement
- Accurate Level Measurement: The Micropilot FMR6x series provides highly accurate level measurements with a precision up to ±1 mm, which is crucial for applications where exact readings are necessary, such as in inventory management or custody transfer.
- Non-Contact Radar Technology: Utilizing non-contact radar technology, the device measures level without coming into direct contact with the medium. This feature ensures longevity and reduces maintenance, especially when dealing with corrosive or hazardous substances.
Adaptability to Harsh Conditions
- Robust Design: The device is built to withstand extreme conditions commonly found in the oil and gas industry, such as high pressure, extreme temperatures, and exposure to chemicals.
- High Pressure and Temperature Tolerance: The FMR6x series is capable of operating under high pressure (up to 40 bar) and at temperatures ranging from -196°C to +400°C, making it suitable for a wide range of applications, including in cryogenic environments or with high-temperature media.
Advanced Signal Processing
- Multi-Echo Tracking: The advanced signal processing algorithm known as Multi-Echo Tracking enables the device to reliably distinguish between the actual level signal and false echoes caused by obstacles, foam, or turbulent surfaces. This ensures reliable operation in challenging environments, such as in tanks with agitators or with products that have varying dielectric constants.
- Dynamic Adaptive Filter: The device also includes a dynamic adaptive filter that further improves the accuracy and reliability of measurements by automatically adjusting to changing process conditions.
What are Applications of Endress Hauser Micropilot FMR6x?
Endress Hauser Micropilot FMR6x series, which includes FMR60, FMR62, and FMR67, is a family of radar level transmitters widely used in the oil and gas and petrochemical industries. These devices are employed for accurate and reliable level measurement of liquids, including crude oil, refined products, chemicals, and other process fluids. Here are some of the key applications in these industries:
- Crude Oil Storage Tanks: The Micropilot FMR6x series is used to measure the level of crude oil in storage tanks, providing accurate readings that are critical for inventory management and ensuring safe storage conditions.
- Refined Product Tanks: In refineries, these devices monitor the levels of refined products like gasoline, diesel, and jet fuel in storage tanks. This helps in managing inventory and preventing overfill situations.
- Separation Units: In oil and gas processing, separation units separate oil, gas, and water. The Micropilot FMR6x series provides precise level measurement to ensure the efficiency of the separation process.
- Distillation Columns: In petrochemical plants, these transmitters are used to monitor levels within distillation columns, ensuring proper separation of chemical components based on their boiling points.
- Safety Systems: The Micropilot FMR6x series is integrated into safety systems to prevent overfills in storage tanks. The devices offer reliable performance even in challenging conditions, ensuring compliance with safety regulations.
How to Choose the Right Endress Hauser Micropilot FMR6x Model?
Choosing the right “Endress Hauser Micropilot FMR6x” model for applications in the oil and gas and petrochemical industries requires careful consideration of several critical factors. The Micropilot FMR6x series is known for its high precision and reliability in level measurement, particularly in challenging environments. However, selecting the appropriate Multitalented level measurement devices involves understanding the specific requirements of your application, including the type of medium, process conditions, and necessary safety certifications.
Firstly, consider the medium being measured, whether it’s crude oil, natural gas, chemicals, or other fluids. Each medium has unique properties, such as viscosity, dielectric constant, and temperature, which can affect the accuracy and reliability of the radar measurement. For instance, the Endress Hauser Micropilot FMR6x models are optimized for high-temperature and high-pressure applications, making it suitable for measuring levels in crude oil distillation columns or in reactors where process conditions are extreme. On the other hand, the FMR60 or FMR62 models might be better suited for standard storage tanks or applications with less demanding process conditions.
Another critical factor is the specific environment where the radar level transmitter will be used. The oil and gas industry often involves hazardous areas where explosive gases or vapors are present. Therefore, it is essential to select a Micropilot FMR6x model that is certified for use in such environments. Models in the FMR6x series offer various certifications, including ATEX, IECEx, and FM, ensuring that they meet the strict safety standards required in these industries. Additionally, the material of construction for the antenna and the housing should be compatible with the corrosive nature of the medium and the surrounding environment to ensure long-term durability and reliable operation.
Process integration is another key consideration. The FMR6x series offers different flange sizes, connection types, and communication protocols (such as HART, PROFIBUS, and FOUNDATION Fieldbus) to ensure seamless integration with existing control systems. It’s crucial to match the transmitter’s specifications with the process interface and communication requirements of your plant to avoid compatibility issues and ensure accurate and reliable data transmission.
Honeywell in Dubai plays a crucial role in providing industrial automation and control solutions. Honeywell offers a wide range of products and services, including process automation, building technologies, and cybersecurity solutions tailored for the regional market. The presence of Honeywell in Dubai supports key industries such as oil and gas, aviation, and infrastructure development, ensuring efficient and secure operations.
Through Endress Hauser in Dubai, industries like oil & gas, water treatment, and food production have access to state-of-the-art products like the Micropilot FMR6x. The presence of Endress Hauser in Dubai reflects the company’s commitment to the growing needs of businesses in the region.
Benefits of Using Endress Hauser Micropilot FMR6x
The Endress+Hauser Micropilot FMR6x series is a robust and reliable solution for level measurement in the oil and gas and petrochemical industries, offering several key benefits. One of the most significant advantages is its high accuracy and reliability in challenging environments. These industries often involve extreme conditions, such as high temperatures, pressures, and corrosive environments, where traditional measurement techniques may falter. The FMR6x series, with its advanced radar technology, ensures precise and consistent level measurements, which are crucial for maintaining operational safety and efficiency.
Another notable benefit of the Endress Hauser Micropilot FMR6x series is its versatility. The devices can be used for a wide range of applications, including measuring the level of liquids, slurries, and solids in various types of tanks and vessels. This flexibility makes it an ideal choice for the diverse requirements of the oil and gas and petrochemical sectors. Moreover, the FMR6x series is designed to handle both simple and complex measurement tasks, from basic level detection to more sophisticated inventory management and process optimization, thereby enhancing productivity and reducing downtime.
The FMR6x series also offers excellent integration capabilities with existing control systems. It is compatible with a variety of communication protocols, including HART, PROFIBUS, and FOUNDATION Fieldbus, allowing seamless integration into a wide range of automation systems. This interoperability is particularly valuable in the oil and gas and petrochemical industries, where integration with existing infrastructure is often necessary to maintain operational continuity and minimize costs.
Moreover, the FMR6x series is designed with robust communication capabilities, integrating seamlessly with existing control systems and offering real-time data for better process management. This connectivity allows for enhanced monitoring and control, leading to improved decision-making and operational efficiency. Additionally, the devices are compliant with international safety and environmental standards, ensuring that they meet the stringent requirements of the oil and gas and petrochemical industries.
In conclusion, the Endress+Hauser Micropilot FMR6x series stands out as a reliable and efficient solution for level measurement in the oil and gas and petrochemical sectors. Its advanced technology, durability, and ease of integration contribute to safer and more efficient operations, ultimately supporting the industry’s goals of maximizing productivity while minimizing risks and costs.
